Swaraj 724 XM Orchard NT
Swaraj 724 XM Orchard NT price starts from ₹ 4,63,326 and goes up to ₹ 4,78,272 (ex-showroom). Moreover, the Swaraj 724 XM Orchard NT model is a 30 HP, fitted with 1824 CC engine, and delivers maximum output with 2 cylinders. In addition, the Swaraj 724 XM Orchard NT tractor is available with 6 Forward and 2 Reverse gears with a 1000 lifting capacity. Buy Swaraj 724 XM Orchard NT at TractorGuru with on-road price & other information.
Compare
Recommended Tractors
Sonalika
Starting Price
₹ X,XX
Sonalika
Starting Price
₹ X,XX
Eicher
Starting Price
₹ 3.95 L
Powertrac
Starting Price
₹ X,XX
Eicher
Starting Price
₹ 4.51 L
Sonalika
Starting Price
₹ X,XX
Swaraj 724 XM Orchard NT Specs & Features
Engine Power
30 HP
|
Clutch
Standard Single dry friction plate (Diaphragm type)
|
|
Engine Capacity
1824 CC
|
PTO HP
21.1
|
Steering
Power Steering
|
Wheel Drive
2WD
|
Warranty
2000 Hours / 2 year
|
Gears
6 Forward + 2 Reverse
|
Lifting Capacity
1000 KG
|
Number of Cylinder
2
|
Wants to know more about
Swaraj 724 XM Orchard NT
Calculate Swaraj 724 XM Orchard NT EMI
Enter your details to calculate the Swaraj 724 XM Orchard NT EMI with this EMI calculator.
Swaraj 724 XM Orchard NT Pros and Cons
The Swaraj 724 XM Orchard NT is a 25 to 30 HP compact tractor fitted with a fuel-efficient 2-cylinder water-cooled engine built for orchard, vineyard, and intercultural operations. Its 1092 mm narrow rear wheel width, live hydraulics with 1000 kg lifting capacity, and 540 RPM PTO make it a reliable choice for PTO-driven implements. Power steering and oil-immersed brakes further add to operator comfort and daily working safety.
Pros
- 1092 mm narrow rear wheel width allows easy movement through tight orchard and intercultural crop rows without damaging plants.
- Bharat Trem-IIIA compliant engine ensures better fuel efficiency during regular field operations.
- Oil-immersed brakes offer longer service life with reduced maintenance compared to conventional dry brakes.
- Adjustable vertical and horizontal side-draft silencer protects low-hanging branches and fruit from exhaust heat.
- 1000 kg hydraulic lifting capacity with Category I & II linkage supports a wide range of orchard implements.
- 35-litre fuel tank supports long working hours with less refuelling.
Cons
- Limited to 2 reverse gears, which may restrict flexibility when repositioning in complex orchard layouts.
- 2WD configuration may reduce traction on wet or sloped orchard terrain compared to 4WD alternatives.
Swaraj 744 FE 4WD Expert Review
“Swaraj 724 XM Orchard NT is a compact-sized tractor of 25-30 HP that is fitted with powerful & fuel efficient 2 cylinder water-cooled engine. Its live hydraulics and 1000 kg lift weight make it effective in handling implements that are compatible with orchards, vineyards, and gardens.”
The Swaraj 742 XM Orchard NT rear wheel width is 1092mm, which makes it suitable for intercultivation crops. Also, the narrow tip trailer of the tractor helps in easy movement and maneuver inside tight orchard layouts. It is equipped with dry type air cleaner, dual element with dust unloader, that protects the engine from abrasive dust and debris.
It has a standard single dry friction plate (diaphragm type) clutch, providing smooth power transfer and allowing seamless gear shifting. The fuel tank capacity of the model is 35 litres, that can work continiously for 8 to 16 hours of continuous operation without a refilling.

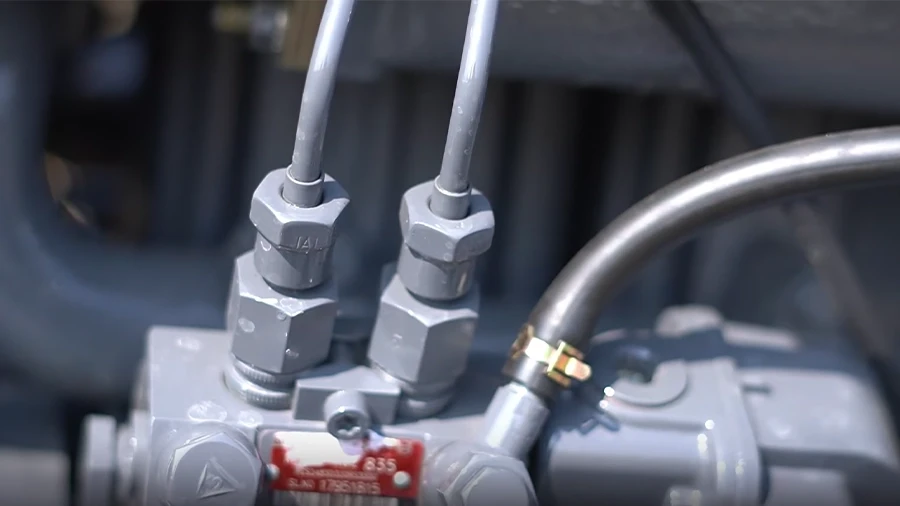

- Swaraj 724 XM Orchard NT comes with an 1824 CC double-cylinder engine that delivers 25 to 30 HP for up-to-the-mark performance in light to medium farming tasks.
- The model features a fuel efficient engine as per the Bharat Trem-IIIA criterion.
- It has a 4-stroke, direct injection diesel engine that gives massive pulling power (torque) to the tractor.
- The bore and stroke of the engine are 100*116 mm, helping in easy movement with implements even in clay soil.
- The water cooled engine with no loss tank prevents engine overheating and reduces maintenance costs.

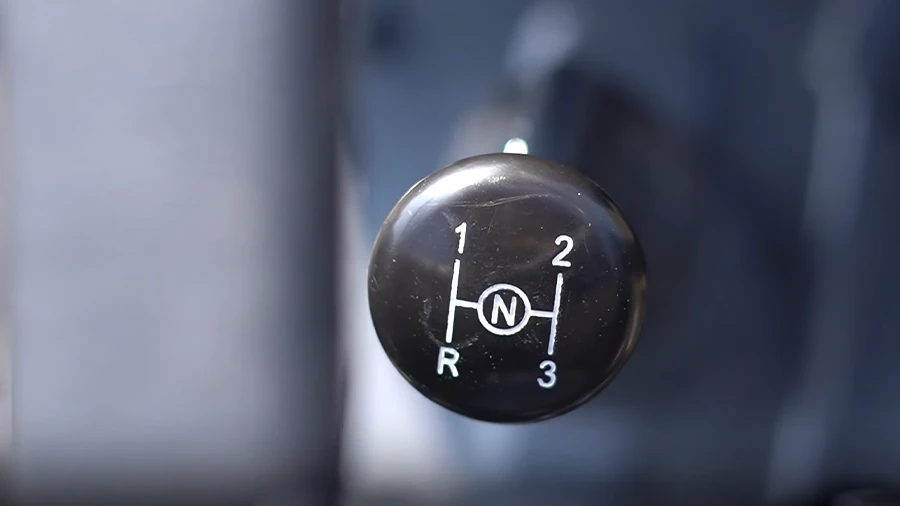

- The gearbox is a constant mesh unit paired with a single dry friction diaphragm clutch, a combination that gives the operator clean, positive gear changes without slippage.
- 6 Forward and 2 Reverse gears cover a forward speed range of 2.20 to 23.30 kmph and a reverse range of 2.20 to 8.70 kmph.
- The lower forward gears handle the slow, controlled passes through crop rows during spraying or cultivation, while the upper gears move the tractor efficiently from one section of the farm to another.
- The reverse range is wide enough to back out of dead-end rows or reposition behind a trailer without multiple point turns.
- The live hydraulic system on the 742 XM Orchard NT operates across three function modes, i.e., position control, automatic draft control, and mix control.
- The weight lifting capacity of the model is 1000 kg with lower link ends and suitable for category I and II type implements.
- PTO speed of the tractor is 540 rotation/ minute that makes it compatible with sprayers and rotavators.
- Hydraulic links of the tractor help in keeping the lower links at the desired height, at a uniform height, and at maximum capacity on the farm at the lower link ends.
- The 6-spline PTO transfers rotational mechanical power directly from the tractor's engine to the driven implement.
- Swaraj 742 XM Orchard NT is equipped with oil-immersed brakes, which wear/ breaks out less and last longer.

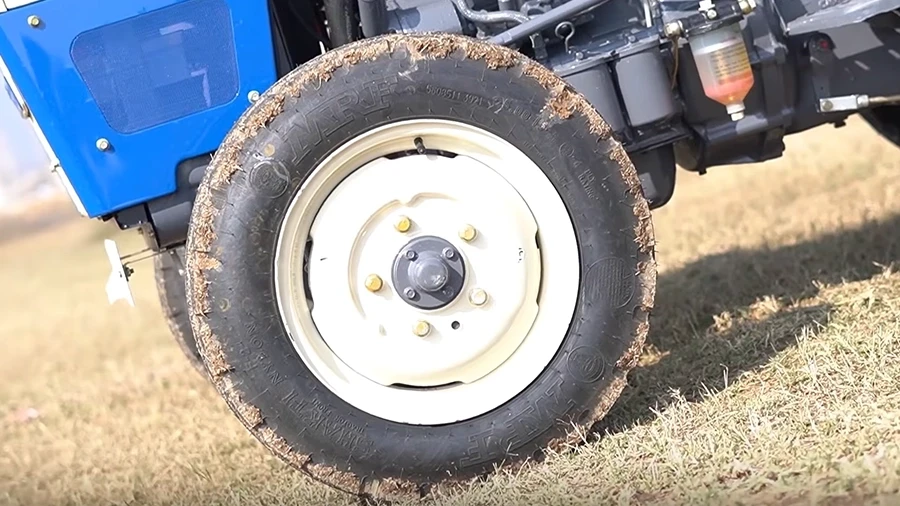

- The front tyre and rear tyre sizes of the tractor are 127 mm x 381 mm and 241.30 mm x 609.60 mm. The wheel base of the tractors gives better stability and grip while moving with several implements.
- Some of the electrical and electronic components integrated in the tractors are the fuel gauge, ammeter, water temperature gauge, and oil pressure indicator.
- It has an adjustable vertical and horizontal side draft silencer that is suitable for orchard cultivation.

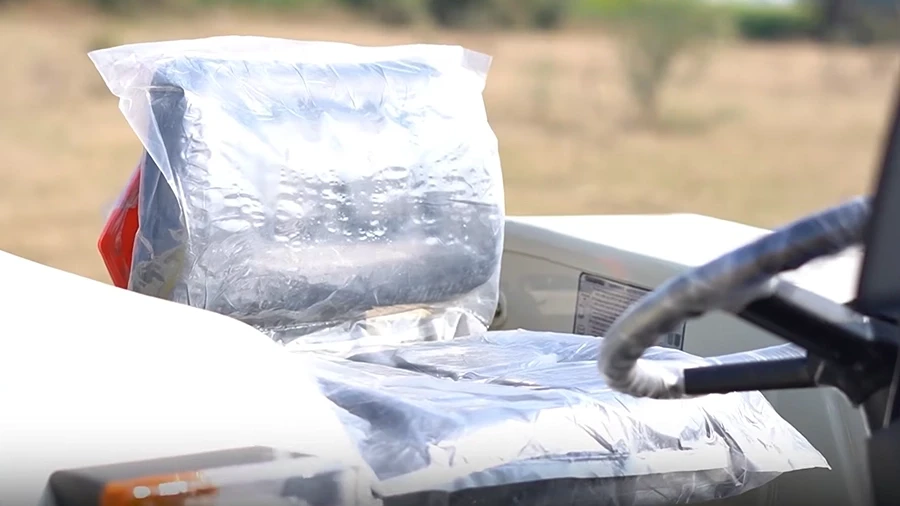

- The model has a comfortable driver's seat with better suspension and adjusting options.
- The 724 XM Orchard NT's narrow build and 540 RPM PTO make it a natural match for boom sprayers, rotavators, inter-row cultivators, fertilizer spreaders, and reapers.
- The hydraulics have an advanced feature of an adjustable check chain to control implement movement and crop protection.
- With a 25 - 30 HP range, Swaraj 742 XM Orchard provides 21.1 PTO HP that makes it compatible with threshers, water pumps, orchard sprayers, etc.
Swaraj 724 XM Orchard NT Rating & Reviews
5 Rating
Based on
1 reviews
Rajendra K.
25 Jun 2019
mala chalvayla kahich problem yet nahi. Diesel khup kami khato. falbage madhe ani perni sathi ha tractor vaparto, yacha fayda asa aahe ki ha jamani madhe khol paryant jat nahi ani mulana eja pochat nahi tyamule bag kama made ha chota tractor vaprayla bara padto.
Read MoreSwaraj 724 XM Orchard NT Tractor Images

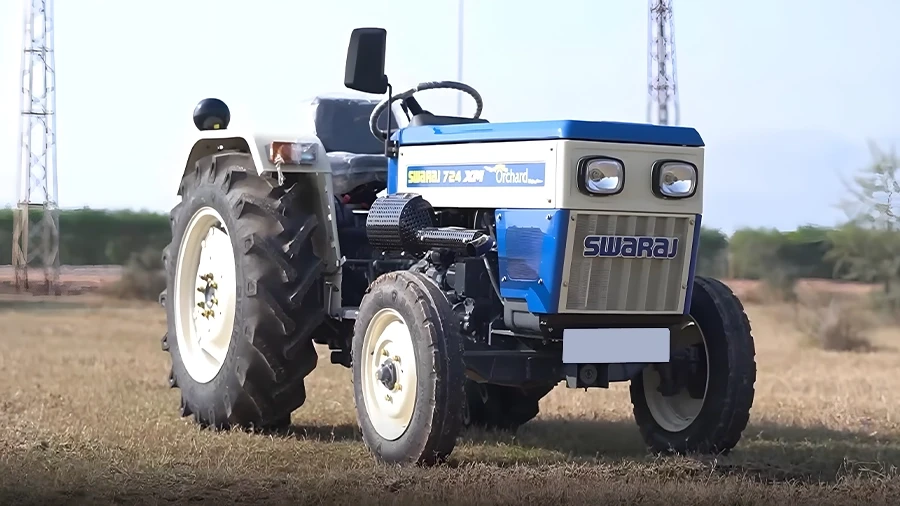

View the latest Swaraj 724 XM Orchard NT Tractor images, featuring 5 high resolution pictures of its build design and operating area. The Swaraj 724 XM Orchard NT offers versatility and style to match your farming needs.
Brief about Swaraj 724 XM Orchard NT Tractor in India
This Swaraj tractor is equipped with modern elements and a powerful engine delivering a total output of 24 HP. The Swaraj 724 XM Orchard NT is one of the popular choices among farmers. To deliver this performance, this engine is connected with an 8-speed gearbox having 2 reverse and 6 forward gears. This gear ratio helps to achieve maximum performance in fields and also to carry out heavy-duty tasks. Additionally, the Swaraj 724 XM Orchard NT has a lifting capacity of 1000 KG. Swaraj 724 XM Orchard NT is a 2-wheel drive tractor which is powered through the rear 2 wheels. In order to improve the comfort and handle the power, this tractor is equipped with oil-immersed brakes.
Features
Swaraj 724 XM Orchard NT is powered by a 2-cylinder engine having a capacity of 1824 CC. This engine is capable of delivering an engine output of 24 HP. With an engine rated RPM of 1800, this engine is considered to be a reliable engine by users. Swaraj 724 XM Orchard NT has a side shift gearbox with an 8-speed gearbox. Additionally, this tractor has a PTO HP of 21 HP at 540 RPM and a 6-spline PTO type. In order to deliver maximum efficiency, this tractor has a 5 X 15-inch tyre setup in the front and a 9.5 X 24-inch tyre setup in the rear. For long productive hours and better efficiency, this tractor has a 35-litre fuel tank.
Special features
Swaraj 724 XM Orchard NT has a wheelbase of 1550 mm, which helps to have better stability for on-road and off-road usage. This tractor has a total of 1495 KG of weight, i.e., 1.4 tons. The overall length of the tractor is 2900 mm. These dimensions make this tractor an overall balanced tractor. This tractor is available with additional accessories for design and aesthetic purposes. Swaraj 724 XM Orchard NT is a 2-wheel drive tractor powered by the rear wheels.
Read More
Read Less
Swaraj 724 XM Orchard NT Full Specifications
| HP Category | 30 HP |
| Engine Capacity | 1824 CC |
| Engine Rated RPM | 1800 |
| No of Cylinder | 2 |
| Air Filter | Dry type, Dual element with dust unloader |
| Cooling System | Water Cooled with No loss tank |
| Clutch Type | Standard Single dry friction plate (Diaphragm type) |
| Transmission Type | Constant mesh |
| Speed Min-Max | 2.2 - 23.3 kmph |
| Reverse Speed Min - Max | 2.2 - 8.7 kmph |
| Forward Gears | 6 |
| Reverse Gears | 2 |
| Brake Type | Oil Immersed Brakes |
| Steering Type | Power Steering |
| PTO Type | 6 Spline |
| PTO RPM | 540 |
| PTO Power | 21.1 |
| Fuel Tank Capacity | 35 Ltr |
| Lift Capacity In Kg | 1000 KG |
| 3 Point Linkage | Category- I and II |
| Hydraulic Controls | ADDC |
| Front Tyre | 5.00 X 15 |
| Rear Tyre | 9.5 x 24 |
| Drive Type | 2WD |
| Other | Fuel efficient engine as per Bharat Trem-IIIA criterion, Rear view mirror, Adjustable vertical & horizontal side draft silencer, suitable for orchards, Transparent water separator |
| Warranty | 2000 Hours / 2 Year |
| Wheel Drive | 2WD |
| Weight | 1495 KG |
| Wheelbase | 1550 MM |
| Overall Length | 2900 MM |
| Tractor Width | 1092 MM |
| Ground Clearance | 220 MM |
