Swaraj 724 XM vs 724 XM Orchard: Which Tractor to Buy

Swaraj 724 XM vs 724 XM Orchard: Which Tractor to Buy
Share Post

Swaraj 724 XM vs Swaraj 724 XM Orchard: Which Tractor is Suitable for Your Land?

Swaraj is a tractor brand of Mahindra & Mahindra Ltd. (Swaraj Division, Mohali, Punjab). Its range runs from 11 HP to 75 HP. Swaraj 724 XM is a 25-30 HP, 2WD tractor for general farming, haulage and transport. Moreover, Swaraj 724 XM Orchard is also a 25-30 HP, 2WD tractor; however, specially built for narrow orchards and inter-row crops.

Check out some of the important features of both of the models:

  • They have a 2-cylinder, 1824 cc water-cooled engine, a 1000 kg lift and a 2000 hours or 2-year warranty.
  • Ex-showroom prices are Rs. 4.58-4.78 lakh for the XM and Rs. 4.68-5.03 lakh for the Orchard.

The suggestion for farmers is to pick the XM for open fields and trolley work, and the Orchard for tight rows and tree gaps.

Swaraj 724 XM vs Swaraj 724 XM Orchard Comparison

Both tractors look similar, but they are built for different jobs. Below is a quick specification table, then a simple comparison of engine performance, transmission, hydraulics, advanced features and price. At the end, you'll see which tractor fits which farmer.

Feature  Swaraj 724 XM Swaraj 724 XM Orchard
Price (Ex-Showroom) Rs. 4.58-4.78 lakh Rs. 4.68-5.03 lakh
PTO HP  22.5 21.1
Brakes Standard Dry Disc type / Oil Immersed Brake (Optional) Heavy Duty Oil Immersed Disc Brakes
Steering Standard Mechanical Steering Standard Power steering.
Fuel Tank  35 litre 60 litre
Weight of the Tractor 1750 KG 1430 KG

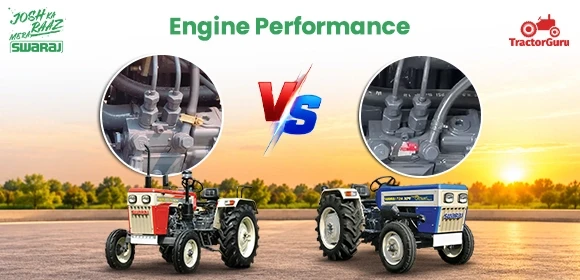

Swaraj 724 XM vs Swaraj 724 XM Orchard: Engine Performance

Engine Performance

Both tractors run the same kind of engine: a 4-stroke, direct injection diesel with 2 cylinders. It is rated at 1800 rpm and cooled by a water-cooled system with a no-loss tank. In simple words, both give steady power for daily farm work and use less diesel.

The small difference is in how the power is used. The XM gives 22.5 PTO HP, a little more than the Orchard's 21.1 PTO HP. The XM also uses a 3-stage oil bath air cleaner, which suits dusty fields. The Orchard has a dry-type, dual-element air cleaner with a dust unloader, and it adds an engine oil cooler for long hours of work.

Key Specs -

Specifications  Swaraj 724 XM Swaraj 724 XM Orchard
HP 25-30 25-30
Engine Cooling Water-cooled with no-loss tank Water-cooled with no-loss tank
Air Filter 3-stage oil bath type Dry type, Dual element with dust unloader
PTO HP 22.5 21.1

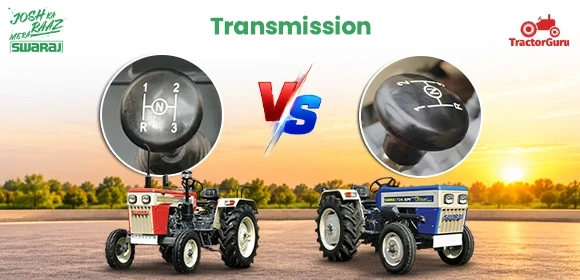

Swaraj 724 XM vs Swaraj 724 XM Orchard Tractor Transmission

Transmission & Gearbox

The XM has 8 forward and 2 reverse gears, with a forward speed of about 2.19 to 27.8 kmph. The extra speed range helps when you switch between slow seedbed work and fast trolley runs.

The Orchard has 6 forward and 2 reverse gears, with a forward speed of 2.29 to 24.2 kmph. That is enough for spraying and inter-row work, where you mostly move slowly.

One of the major differences of Swaraj 724 XM & Swaraj 724 XM Orchard specs is the type of clutch used. XM uses a heavy-duty single dry plate (280 mm dia), and Orchard uses a single clutch with a ceramic lining - 280 mm diameter.

Key Specs -

Specifications Swaraj 724 XM Swaraj 724 XM Orchard
Gear Box 8 Forward + 2 Reverse 6 Forward + 2 Reverse
Battery 12 V 88 Ah 12 V 75 AH
Reverse Speed 2.74 - 10.77 kmph 2.28 - 9.02 kmph
Clutch Heavy Duty Single dry plate(280 mm dia.) Heavy Duty Oil Immersed disc Brakes

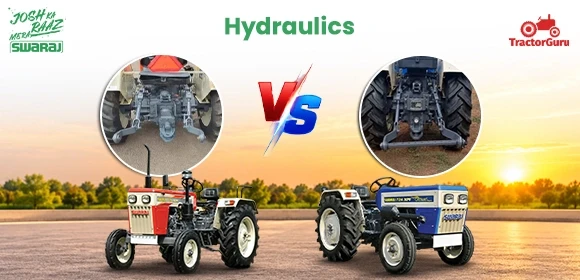

Swaraj 724 XM vs Swaraj 724 XM Orchard Tractor Hydraulics

Hydraulics and PTO

The hydraulics are almost the same on both tractors. Each lifts 1000 kg at the lower link ends. Each has live hydraulics with position control, automatic draft control and mix control, and a Category I and II 3-point linkage. Position control holds the implement at a fixed height. Draft control keeps the depth even when the soil changes.

For PTO, the XM has 540 and 1000 rpm options so that it can run threshers and sprayers. The Orchard gives 21.1 PTO HP, which is enough for sprayers, water pumps, chaff cutters, post hole diggers and light rotavators of about 4 to 5 feet.

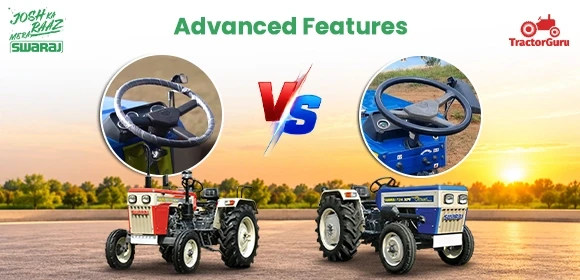

Swaraj 724 XM vs Swaraj 724 XM Orchard Tractor Advanced Features

Advanced Features

Check out some of the special features built into both of the tractors:

Swaraj 724 XM:

  • Quick release coupler with tap-off pipe, for easy connection of a tipping trailer
  • Straight front axle and a longer wheelbase (about 1930 mm), which means better stability and less front lifting with a loaded trolley
  • Stabiliser bar to control the sway of heavy implements like a rotavator
  • Steering lock for safety against theft
  • Ground clearance of about 380 mm, good for tall crops
  • Larger 6.00 x 16 front and 12.4 x 28 rear tyres

Swaraj 724 XM Orchard:

  • Horizontal (down draft) silencer, so the exhaust does not touch low branches or fruit
  • Narrow rear track and a body only 1330 mm wide, to pass easily between rows
  • Deluxe driver seat with better suspension
  • Large 60-litre fuel tank for long hours without refuelling
  • Smaller 5.00 x 15 front and 11.2 x 24 rear tyres, with a shorter wheelbase (about 1555 mm) for tight turns

Price Comparison

The XM costs Rs. 4.58-4.78 lakh ex-showroom, and the Orchard costs Rs. 4.68-5.03 lakh. The Orchard costs roughly Rs. 10,000 to Rs. 25,000 more, and the extra money goes into power steering, oil-immersed brakes, orchard-friendly design and the bigger fuel tank.
The on-road price will change with your state, RTO charges and insurance, so check the final quote with your nearest Swaraj dealer.

Which One Should You Buy?

Choose the Swaraj 724 XM if:

  • You have open fields and need a tractor for tillage, transport and haulage.
  • You often carry loaded trolleys and want a stable, longer wheelbase.
  • You want a lower price and are fine with mechanical steering.

Choose the Swaraj 724 XM Orchard if:

  • You work in orchards, vineyards or narrow vegetable rows.
  • You want power steering, oil-immersed brakes and a low, narrow body.
  • You do a lot of spraying and inter-row work for long hours.

Both are dependable, fuel-efficient and good value for small and medium farms. Visit a Swaraj dealer for a demo before you decide.
