Swaraj 843 XM
Swaraj 843 XM price starts from ₹ 6,32,714 and goes up to ₹ 6,67,588 (ex-showroom). Moreover, the Swaraj 843 XM model is a 42 HP, fitted with 2730 CC engine, and delivers maximum output with 4 cylinders. In addition, the Swaraj 843 XM tractor is available with 8 Forward and 2 Reverse gears with a 1500 lifting capacity. Buy Swaraj 843 XM at TractorGuru with on-road price & other information.
Compare
Recommended Tractors
Massey Ferguson
Starting Price
₹ X,XX
Sonalika
Starting Price
₹ X,XX
Swaraj
Starting Price
₹ X,XX
Farmtrac
Starting Price
₹ X,XX
Swaraj
Starting Price
₹ X,XX
Massey Ferguson
Starting Price
₹ X,XX
Swaraj 843 XM Specs & Features
Engine Power
42 HP
|
Clutch
Single / Dual
|
|
Engine Capacity
2730 CC
|
PTO HP
38.4
|
Steering
Mechanical / Power Steering (Optional)
|
Wheel Drive
2WD
|
Warranty
6000 hr/6 year
|
Gears
8 Forward + 2 Reverse
|
Lifting Capacity
1500 KG
|
Number of Cylinder
4
|
Wants to know more about
Swaraj 843 XM
Calculate Swaraj 843 XM EMI
Enter your details to calculate the Swaraj 843 XM EMI with this EMI calculator.
Swaraj 843 XM Pros and Cons
The Swaraj 843 XM has a 41 to 50 HP engine suited for steady work on medium to large farms. It carries a 1500 kg lifting capacity that supports tools like cultivators, disc harrows, and light loaders. Oil-immersed multi-disc brakes improve safety by giving stronger control during frequent braking.
Pros
- The 4-cylinder engine gives smoother, low-vibration power delivery at 41 to 50 HP.
- 3-stage oil bath air filter extends engine life in dusty field conditions.
- IPTO option separates PTO and travel control, reducing clutch wear during stationary PTO work.
- Oil-immersed disc brakes support working in wet paddy and muddy conditions.
-
6-year / 6000-hour warranty is strong for this segment
An Easy Hitch reduces implement attachment time
Cons
- Mechanical steering is the default & power steering costs extra.
- 1500 kg hydraulic lift is adequate but not suitable for big-sized implements.
-
A 3-stage air cleaner placed internally makes it slightly harder to access for cleaning.
Swaraj 843 XM Expert Review
“The Swaraj 843 XM features a 3-cylinder, water-cooled engine that offers strong performance in different farming tasks. Its 1,500 kg lifting capacity can easily handle ploughs, seed drills, and rotavators. The 8 forward + 2 reverse SC/ IPTO clutch gearbox and optional power steering ensure smooth, precise maneuvering.”

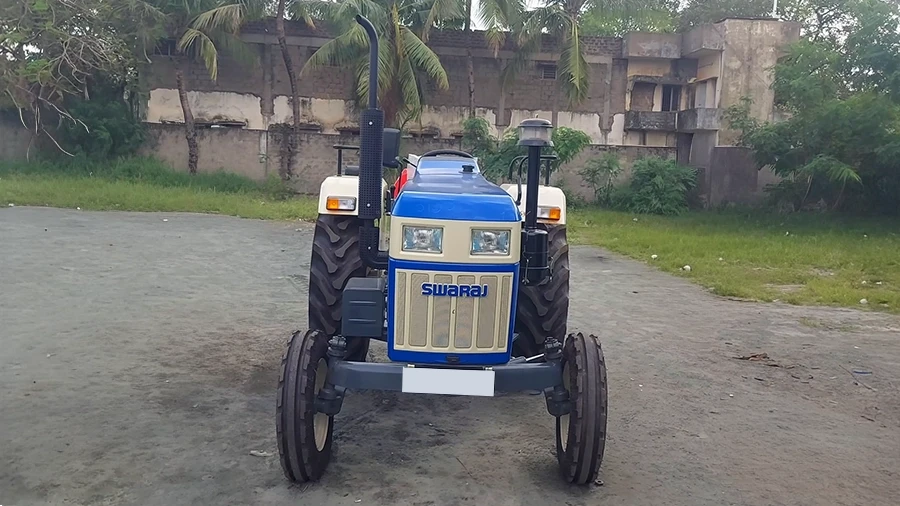

The Swaraj 843 XM is a 42 HP tractor with the configuration of 3430 mm in length, 1770 mm in width, and stands 2215 mm tall. The wheelbase is 1980 mm, which gives the tractor good straight-line stability when towing trolleys or working with rear-mounted implements. Ground clearance stands at 293 mm, which is accurate for most field conditions
The tractor features a fixed-type front axle, which is suitable for handling heavy attachments. It produces 1900 RPM, giving you high-torque performance. The 56-litre fuel tank supports longer shifts without stopping to refuel.

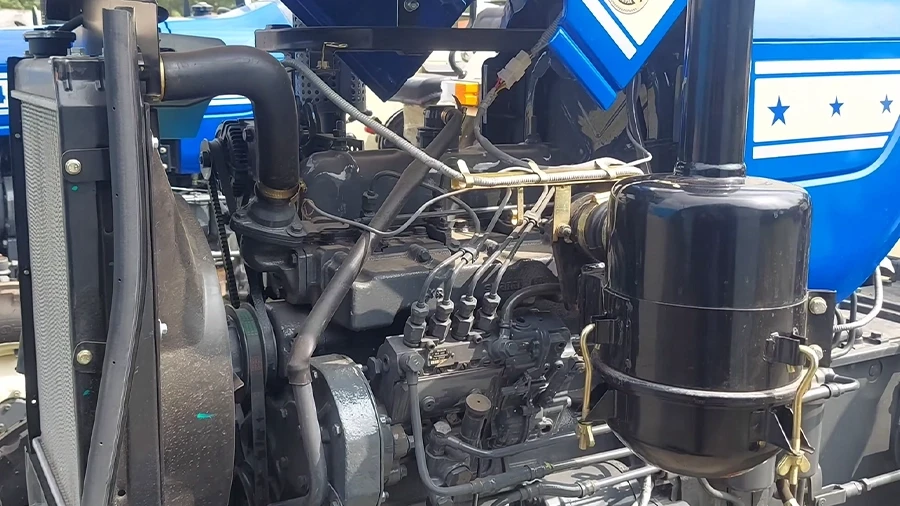

- The Swaraj 843 XM is a 41-45 HP tractor that runs through a 4-cylinder engine, which is highly suitable for farming in medium-sized lands.
- The engine exerts its total output at 2730 cc at a rated speed of 1900 RPM, making it compatible with several implements.
- The bore of 88.90 mm and stroke of 110 mm prioritise high torque over maximum speed.
- The four-cylinder configuration delivers better low-RPM torque and smoother power.
- It has a water-cooled engine, keeping temperatures stable during extended field hours.
- Swaraj 843 XM engine is equipped with 3-stage oil bath air cleaner and provides layered filtration, i.e., important in dusty conditions.

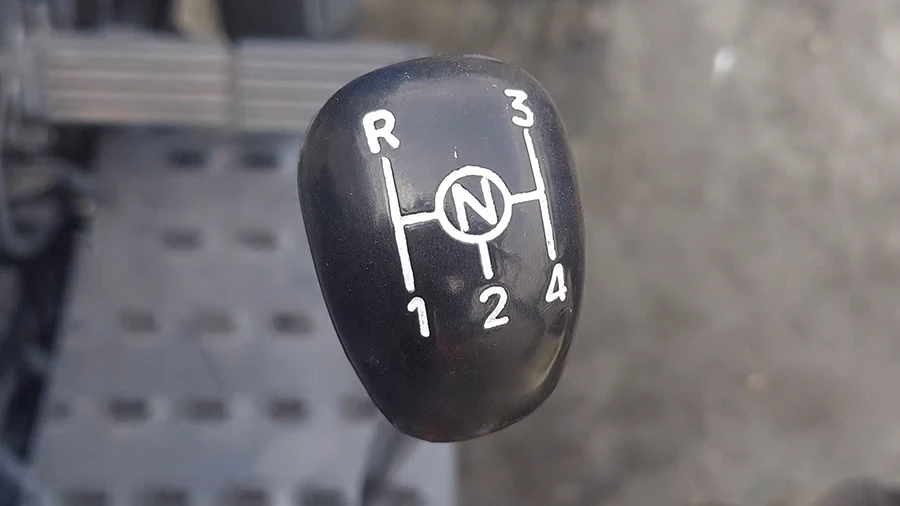

- The 843 XM uses a Sliding Mesh/ Partial Constant Mesh (PCM) gearbox with 8 forward and 2 reverse gears, which controls its speed and pulling power.
- The model has centre shift as standard and side shift gear levers as an option, which helps in making road haulage more manageable.
- Forward speeds range from 2.3 to 29.3 km/h. Reverse goes from 2.7 to 10.6 km/h, which is enough to move in tight headlands.
- Clutch options are Single Clutch (SC) or IPTO. The IPTO (Independent PTO) allows the PTO shaft to run while the tractor is stationary.
- The electrical system runs on a 12V, 88 AH battery, helps in starting of motor in the winter season.

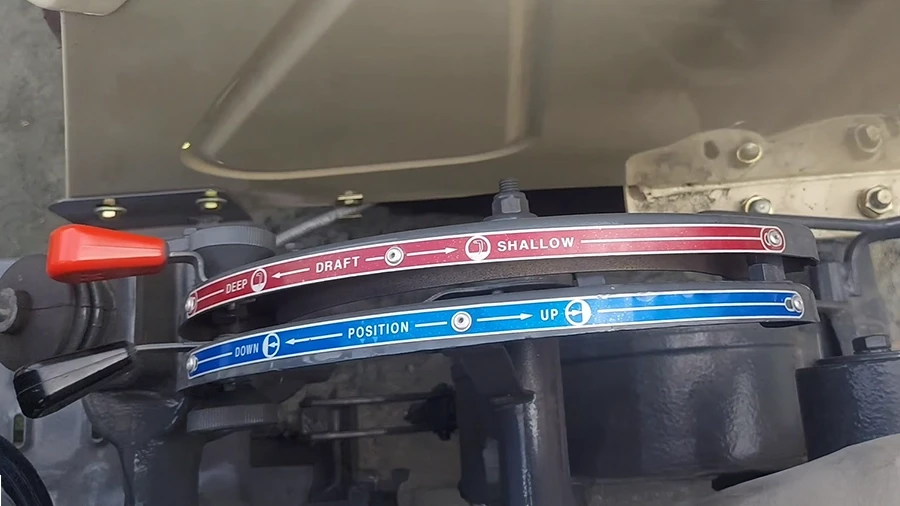

- The hydraulic system on the 843 XM uses ADDC (Automatic Depth and Draft Control) with Category I and II implement pins on the 3-point linkage.
- Lifting capacity is 1500 kg at the lower link ends. That covers most common implements, such as rotavators up to 6 feet, MB ploughs, cultivators, and seed drills.

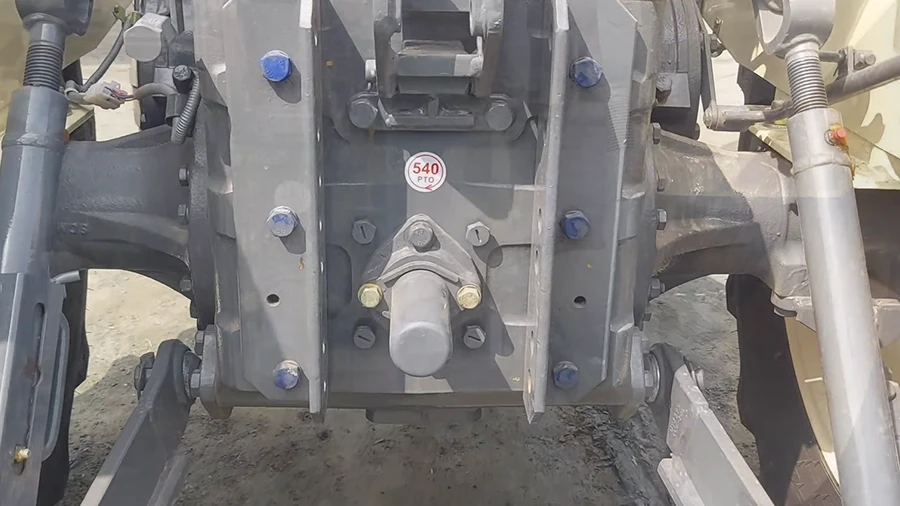

- The PTO shaft runs at 540 RPM as standard. The optional multi-speed PTO (540/540 with 4 forward and 1 reverse speed) gives more flexibility for implements.
- Swaraj 843 XM has an easy hitch feature in hydraulics that leads to quicker attachment and requires less manual effort.
- DCV (Dual Control Valve) is available as an option for running front-end loader or trailer braking circuits.
- PTO output is 38.4 HP, which is sufficient for running distinct types of implements.
- Braking is handled by oil-immersed disc brakes on both sides. Sealed in oil, they resist heat build-up and work consistently in wet and muddy conditions.
- The instrument panel covers engine RPM, fuel level, water temperature, and oil pressure.
- Additional features include a steering lock for parking control and a 5-amp mobile charging socket.
- The glass-lens headlamps provide better road presence and field illumination compared to older sealed-beam units.
- The bonnet is hydraulically assisted for opening and is tightly sealed, protecting the engine from dust.
- Standard accessories include a bumper, ballast weight, top link, canopy, and drawbar.
- The tractor comes with a 6-year or 6000-hour warranty.
- With 38.4 PTO HP and a 540 RPM shaft, the 843 XM handles a wide range of implements. Rotavators in the 5 to 6 feet range work well in prepared soil.
- The ADDC hydraulics maintain consistent working depth during rotavation and primary tillage without needing manual adjustment.
- The 1500 kg lifting capacity suits standard MB ploughs (2–3 bottom), cultivators, and seed drills.
- Sprayers, chaff cutters, threshers, and water pump sets run cleanly off the standard 540 RPM PTO.
Swaraj 843 XM Rating & Reviews
4 Rating
Based on
2 reviews
Vikram Singh
19 Nov 2024
Chahe ploughing ho ya trolley kheechna, ye tractor sab kaam easily kar leta hai. Multi-purpose use ke liye best hai.
Read More
sourabh choudhary
18 Apr 2024
SWARAJ 843 XM - 45 एचपी रेंज में खेती के लिए बोहोत शानदार ट्रैक्टर है।
Read MoreBrief about Swaraj 843 XM Tractor in India
This Swaraj tractor is equipped with modern elements and a powerful engine delivering a total output of 42 HP, Swaraj 843 XM is one of the popular choices among farmers. To deliver this performance, this engine is connected with a 10-speed gearbox having 2 reverse and 8 forward gears. This gear ratio helps to achieve maximum performance in fields and also to carry out heavy-duty tasks. Additionally, the Swaraj 843 XM has a lifting capacity of 1000 KG. Swaraj 843 XM is a 2-wheel drive tractor which is powered through the rear 2 wheels. In order to improve the comfort and handle the power, this tractor is equipped with oil immersed brakes.
Features
Swaraj 843 XM is powered by a 4-cylinder engine having a capacity of 2730 CC. This engine is capable of delivering an engine output of 42 HP. With an engine rated RPM of 1900 RPM, this engine is considered to be a reliable engine by users. Swaraj 843 XM has a 10-speed gearbox. Additionally, this tractor has a PTO HP of 37 HP at 540 RPM and a 6 spline PTO type. In order to deliver maximum efficiency, this tractor has a 6 X 16-inch tyre setup in the front and a 12.4 X 28 / 13.6 X 28-inch tyre setup in the rear. For long productive hours and better efficiency, this tractor has a 60-litre fuel tank.
Special features
Swaraj 843 XM is a full-sized tractor with a wheelbase of 2055 mm and an overall length of 3460 mm. The tractor weighs 1830 Kgs. Swaraj 843 XM is equipped with modern features for the comfort of the farmers and operators. These features include adjustable seats, powerful headlamps, and many more advanced features.
Read More
Read Less
Swaraj 843 XM Full Specifications
| HP Category | 42 HP |
| Engine Capacity | 2730 CC |
| Engine Rated RPM | 1900 |
| No of Cylinder | 4 |
| Air Filter | 3 stage oil bath type |
| Cooling System | Water Cooled |
| Clutch Type | Single / Dual |
| Transmission Type | Sliding Mesh/Partial Constant Mesh |
| Gear Level Position | Side Shift |
| Speed Min-Max | 2.3 – 29.3 kmph |
| Reverse Speed Min - Max | 2.7 – 10.6 kmph |
| Forward Gears | 8 |
| Reverse Gears | 2 |
| Brake Type | Oil Immersed Brakes |
| Steering Type | Mechanical / Power Steering (Optional) |
| PTO Type | SC/IPTO |
| PTO RPM | 540 |
| PTO Power | 38.4 |
| Fuel Tank Capacity | 60 Ltr |
| Lift Capacity In Kg | 1500 KG |
| 3 Point Linkage | ADDC, I and II type implement pins. |
| Hydraulic Controls | Position control & Automatic draft control |
| Front Tyre | 6 X 16 |
| Rear Tyre | 13.6 X 28 |
| Drive Type | 2WD |
| Warranty | 6000 hr/6 Year |
| Wheel Drive | 2WD |
| Weight | 1830 KG |
| Wheelbase | 1980 MM |
| Overall Length | 3430 MM |
| Tractor Width | 1770 MM |
| Ground Clearance | 293 MM |
