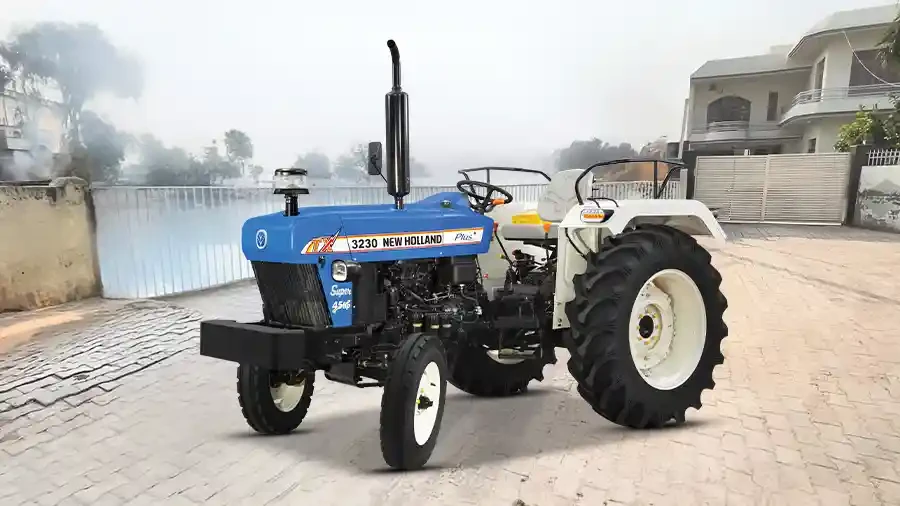

New Holland 3230 TX Super
New Holland 3230 TX Super price is ₹ 7,15,000. Moreover, the New Holland 3230 TX Super model is a 45 HP, fitted with 2500 CC engine delievers maximum output with 3 cylinders. In addition, the New Holland 3230 TX Super tractor is available with 8 Forward and 2 / 8 Reverse gears with a 1800 lifting capacity. Buy New Holland 3230 TX Super at TractorGuru with price & other information.
Compare
New Holland 3230 TX Super Specs & Features
Engine HP
45 HP
|
Clutch
Single Clutch/Double Clutch with IPTO lever*
|
PTO HP
41
|
Steering
Power Steering
|
Wheel Drive
2WD
|
Warranty
6000 Hours / 6 year
|
Gears
8 Forward + 2 / 8 Reverse
|
Lifting Capacity
1800 KG
|
Number of Cylinder
3
|
Calculate New Holland 3230 TX Super EMI
New Holland 3230 TX Super Rating & Reviews
4.8 Rating
Based on
4 reviews
ज्ञानेंद्र सिंह छोटे
07 Nov 2022
बहुत अच्छा टैक्टर है डीजल की खपत भी सही है
Read More
Jitendra chouhan
26 Sep 2022
Very good 👍
Read More
Rajesh
16 Apr 2022
Nice tractor, New Holland 3230 TX Super is best tractor.
Read More
Sukhvinder singh
02 Apr 2022
Good tractor, use in agriculture for best performance
Read MoreBrief about New Holland 3230 TX Super Tractor in India
Why buy New Holland 3230?
New holland 3230 tx super model is just the apt tractor you wanna buy at the above-given price range. This tractor produces a high amount of torque that is enough to produce a dragging force of 160.7 Newton-Metres. Therefore if you want to buy a tractor with a low price and higher weight lifting capacities, this tractor fits just right in the gap. Also, the New Holland 3230 has a power of 45, which makes the tractor a competitive one in the segment.
What specifications make New Holland 3230 TX Super a worth-it tractor?
There are many significant specifications in New Holland 3230 TX Super. However, only a few can be classified as worth-it ones. Let us specify those specifications for you:
It comes with a 3-cylinder, 2500 CC engine that produces 45 HP of power. This rotates the engine shaft at 2000 RPM. Thus, producing maximum torque of 160.7 Newton-Metres.
The water-cooled engine makes the New Holland 3230 TX super tractor a remote-friendly tractor.
The fuel tank capacity of the New Holland 3230 tractor is 46 litres. This makes it a tractor for long farming or non-farming operations.
The tractor contains a separate oil bath with a pre-cleaner. This allows the cleaning of carbon particles to settle in the dual element filter.
The mechanical actuated oil immersed brakes are responsible for the smooth braking system without easy wear and tear.
The New Holland 3230 TX super has a gearbox containing 8 forward gears and 2 reverse gears responsible for a speed of 30.81 Kmph in the forward direction and 11.31 Kmph in the reverse direction. This is further supported by a single and dual-clutch with an independent PTO lever. Henceforth, the New Holland tractor has a multi-speed PTO.
The gear transmission is of constant mesh type. This makes vehicle transmission easier and smooth.
The ADDC hydraulics has smart sensors that are attached to the category 2, 3-point linkage and thus can smartly handle external loads attached to the New Holland 3230 tractor.
Read More
Read Less
New Holland 3230 TX Super Full Specifications
| HP Category | 45 HP |
| Engine Capacity | 2500 CC |
| Engine Rated RPM | 2200 |
| Max Torque | 160.7 |
| No of Cylinder | 3 |
| Air Filter | Oil bath type with Pre-cleaner |
| Cooling System | Water Cooled |
| Clutch Type | Single Clutch/Double Clutch with IPTO lever* |
| Transmission Type | Constant Mesh AFD Side Shift |
| Speed Min-Max | 2.5 – 30.81 kmph |
| Reverse Speed Min - Max | 3.11 - 11.30 kmph |
| Forward Gears | 8 |
| Reverse Gears | 2 / 8 |
| Rear Axle | Straight Axle Planetary Drive |
| Brake Type | Oil Immersed Multi Disc Brake |
| Turning Radius With Brake | 2800 |
| Steering Type | Power Steering |
| PTO Type | Eptraa PTO, Reverse PTO & GSPTO |
| PTO RPM | 540S / 540E* |
| PTO Power | 41 |
| Fuel Tank Capacity | 46 Ltr |
| Lift Capacity In Kg | 1800 KG |
| 3 Point Linkage | Mixed Control, Lift- O-Matic, Response Control, Multiple Sensitivity Control, Isolator Valve. |
| Hydraulic Controls | Automatic Depth and Draft Control |
| Front Tyre | 6 X 16 / 6.5 X 16 |
| Rear Tyre | 13.6 X 28/ 14.9 x 28 |
| Drive Type | 2WD |
| Accessories | Tools,Bumper,Top Link,Ballast Weight,Canopy,Drawbar,Hitch |
| Other | Synchro Shuttle 8F+8R, Potato Special Axle 48", Remote Valve, Paddy Special - Double Metal Face Sealing,Heavy Duty Front Axle Support, Deluxe Driver Seat, Softek Clutch, Multisensing with DRC Valve, Tipping Trailer Pipe, 90 kg HD Front Bumper, Rear weight (32 kg each side), Neutral Safety Switch, Clutch Safety Lock, Antiglare Rear View Mirror, Semi Flat Platform |
| Warranty | 6000 Hours / 6 Year |
| Wheel Drive | 2WD |
| Weight | 1873 KG |
| Wheelbase | 1900 MM |
| Overall Length | 3330 MM |
| Tractor Width | 1790 MM |
| Ground Clearance | 395 MM |
New Holland 3230 TX Super Comparison with Similar Tractors
Explore all New Holland tractors
Explore the latest models, specifications, and pricing for New Holland tractors
View New Holland tractorsTractor Guru Recommendations
For EMI Click Here
For EMI Click Here
For EMI Click Here
For EMI Click Here
For EMI Click Here
Similar to New Holland 3230 TX Super
For EMI Click Here
For EMI Click Here
For EMI Click Here
For EMI Click Here
For EMI Click Here
New Holland 3230 TX Super News & Updates
A True Evaluation of New Holland 3230 TX Super Tractor
In this segment, we will evaluate the New Holland 3230 in detail. In the discussion, we will consider the metrics as engine, performance, price, torque, hydraulics, load lifting capacity, etc. Furthermore, metrics such as the style and design of the tractor are also discussed in the segment.
What are the true features of New Holland 3230 TX Super Tractor?
Although there can be many features of the New Holland 3230, the true features of the New Holland 3230 TX Super tractor are discussed in the below subheadings.

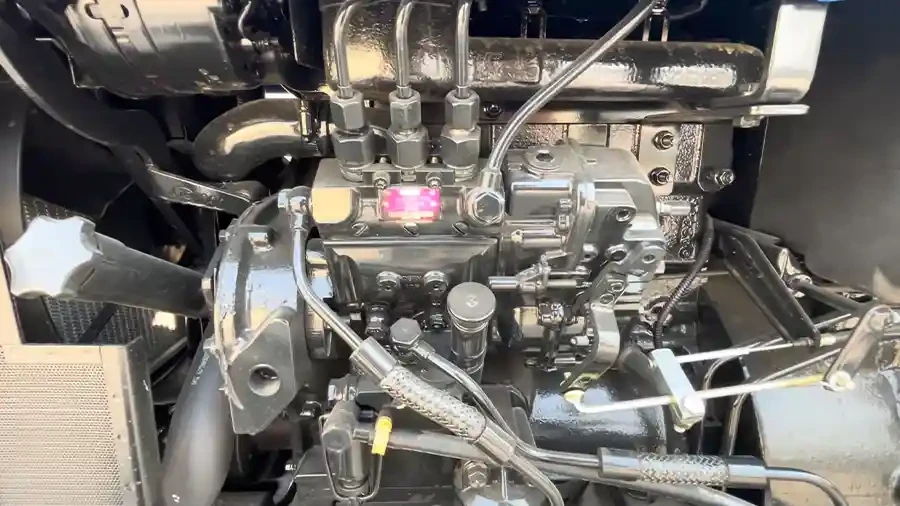

The engine, performance, and price of the New Holland 3230
The engine of New Holland 3230: The New Holland 3230 TX Super tractor has a factory-made 2500 CC engine with 45 HP power. This generates a rotational velocity of 2200 RPM. This generates a torque or drag force of 160.7 Newton-Metres.
The above features of the tractor make the engine powerful and therefore allow high performance for the New Holland 3230 TX Super tractor. Furthermore, the constant mesh gearbox, along with the dual-clutch, supports the tractor's speed and fuel efficiency while performing on-road operations.
The performance of New Holland 3230 TX Super: The performance of New Holland 3230 TX Super is just as per the benchmarks set by its competitors. This tractor has got a warranty period of 6 years.
New holland 3230 price in India: The price is Rs 7.15 lakhs.
Torque, load-lifting capacity, and hydraulics of New Holland 3230 tractor?
Torque and load lifting capacity: The torque of the New Holland 3230 tractor is 160.7 Newton-Metres. This dragging force, a.k.a. torque, is enough to carry a maximum load of 1800.
The hydraulics of New Holland 3230: The hydraulics of New Holland 3230 is ADDC with a category 2 point 3 linkage control system. This allows easy control of the external hydraulics attached to the system.
Style and design of New Holland 3230 tx Super?
The New Holland 3230 4WD and New Holland 3230 2WD come with blue paint and white strips. This matches the bluish-white theme of the tractor. Having a comfortable seat on the tractor allows for fatigue-free, long-hour operations. The smoke chimney is on the driver's right-hand side, while the smoke filter on the New Holland 3230 tractor is on the driver's left-hand side.
Furthermore, talking about the single-piece bonnet, it has got the vitals of the tractor inside it. In addition to this, the single-piece bonnet contains the logo on the top of the and in between front halogen lamps. The Power Steering in the New holland 3230 Tx super 4wd tractor makes the steering and turning easier. This improves the use of the tractor in small farmlands.
The rear of the tractor contains the halogen lamps on the mudguard at the back.
An honest review of the New Holland 3230 tractor?
After discussing the above facts, we have come to the conclusion that the "New Holland 3230 TX super tractor is a performance focused tractor. Furthermore, this tractor is one of the best buys as compared to its competitors".
Read More
Read Less
Frequently Asked Question - New Holland 3230 TX Super
What is the HP of the New Holland 3230 TX Super tractor?
New Holland 3230 TX Super has 45 HP for efficient farming.
How many gearbox is available in New Holland 3230 TX Super?
New Holland 3230 TX Super has 8 Forward + 2 / 8 Reverse gearbox.
What is the starting price of New Holland 3230 TX Super?
The starting price of New Holland 3230 TX Super is Rs. 715000 .
How much fuel tank capacity of New Holland 3230 TX Super?
New Holland 3230 TX Super has 46 litres fuel tank capacity.
Which steering type is available in New Holland 3230 TX Super?
New Holland 3230 TX Super has Power Steering
Which transmission type is available in New Holland?
Constant Mesh AFD Side Shift transmission is available in New Holland 3230 TX Super.
Can I finance New Holland 3230 TX Super at TractorGuru?
Yes, you can finance New Holland 3230 TX Super tractor at TractorGuru with many EMI options.
Which brake type is available in New Holland 3230 TX Super tractor?
Oil Immersed Multi Disc Brake are available in New Holland 3230 TX Super tractor
How much wheelbase is available in New Holland 3230 TX Super tractor?
1900 mm' wheelbase is available in New Holland 3230 TX Super tractor.
Which are the best models of New Holland tractor?
Best models of New Holland tractor are New Holland 5620 Tx Plus Trem IV, Excel 4710, Excel Ultima 5510 and many more.
How much PTO HP New Holland 3230 TX Super model delivers?
The New Holland 3230 TX Super model delivers the 41 PTO HP.
Where I can get the current updates of New Holland 3230 TX Super?
At TractorGuru, you can get current updated of New Holland 3230 TX Super.
How many hours/year warranty is available on New Holland 3230 TX Super tractor?
6000 Hours / 6 warranty is available on New Holland 3230 TX Super.
What is the ground clearance of New Holland 3230 TX Super tractor model?
The ground clearance of New Holland 3230 TX Super tractor model is 395 MM.
