Swaraj 717
Swaraj 717 price starts from ₹ 3,18,848 and goes up to ₹ 3,28,812 (ex-showroom). Moreover, the Swaraj 717 model is a 15 HP, fitted with 863.5 CC engine, and delivers maximum output with 1 cylinders. In addition, the Swaraj 717 tractor is available with 6 Forward and 3 Reverse gears with a 780 lifting capacity. Buy Swaraj 717 at TractorGuru with on-road price & other information.
Compare
Recommended Tractors
Massey Ferguson
Starting Price
₹ 3.50 L
Mahindra
Starting Price
₹ X,XX
Mahindra
Starting Price
₹ X,XX
Massey Ferguson
Starting Price
₹ X,XX
Sonalika
Starting Price
₹ X,XX
Sonalika
Starting Price
₹ X,XX
Swaraj 717 Specs & Features
Engine Power
15 HP
|
Clutch
Single clutch
|
|
Engine Capacity
863.5 CC
|
PTO HP
9
|
Steering
Mechanical Steering
|
Wheel Drive
2WD
|
Warranty
750 hr / 1 year
|
Gears
6 Forward + 3 Reverse
|
Lifting Capacity
780 KG
|
Number of Cylinder
1
|
Wants to know more about
Swaraj 717
Calculate Swaraj 717 EMI
Enter your details to calculate the Swaraj 717 EMI with this EMI calculator.
Swaraj 717 Pros and Cons
The Swaraj 717 is a 15 HP (11.18 kW) mini tractor built for small farms, orchards, and inter-row operations. It features a compact 2WD layout, 3-stage oil bath air filter, and dry disc brakes for daily performance. ADDC hydraulics, a live 540 RPM PTO, and an adjustable silencer make it a practical and low-maintenance choice for horticulture and light cultivation work.
Pros
- Compact 15 HP engine with fuel-efficient single-cylinder design, ideal for long spraying and inter-row cultivation on small farms.
- 780 kg hydraulic lift capacity with ADDC makes it easy to handle cultivators, sprayers, and small rotavators with consistent depth control.
- Adjustable silencer allows smooth operation inside orchards and vineyards without damaging low-hanging branches.
- Side-shift gear lever and 6F + 3R gearbox reduce operator fatigue and offer precise speed control across varied field tasks.
- Compact dimensions (2435 mm x 1210 mm) and 260 mm ground clearance enable easy movement through narrow crop rows without damaging standing plants.
Cons
- Dry disc brakes may need extra attention in wet or slippery field conditions compared to oil-immersed alternatives.
- Single-cylinder engine limits performance on heavy implements and is not suited for large-scale or commercial farming operations.
Swaraj 717 Expert Review
“The Swaraj 717 is a 15 HP (11.18Kw), designed for orchards, vineyards, and intercultural operations. The tractor gives its maximum output with a 1-cylinder engine and 2300 RPM. It has 6 forward and three reverse speeds along with a side shift mechanism.”
Swaraj 717 can cater to the farming requirements of small to medium-sized lands. The model has a 2-wheel drive that can easily perform spraying, cultivation, and inter-row farming. It is a compact-sized tractor with the length & width of 2435 mm and 1210 mm, respectively. It makes the tractor efficient to move in narrow spaces of cotton, chillies, and groundnut farming.
The fuel tank capacity of the model is 23 litres, which provides decent working hours with less refuelling. The weight lifting capacity of 750 kg makes the tractor efficient to handle rotavator, cultivators, and sprayers.

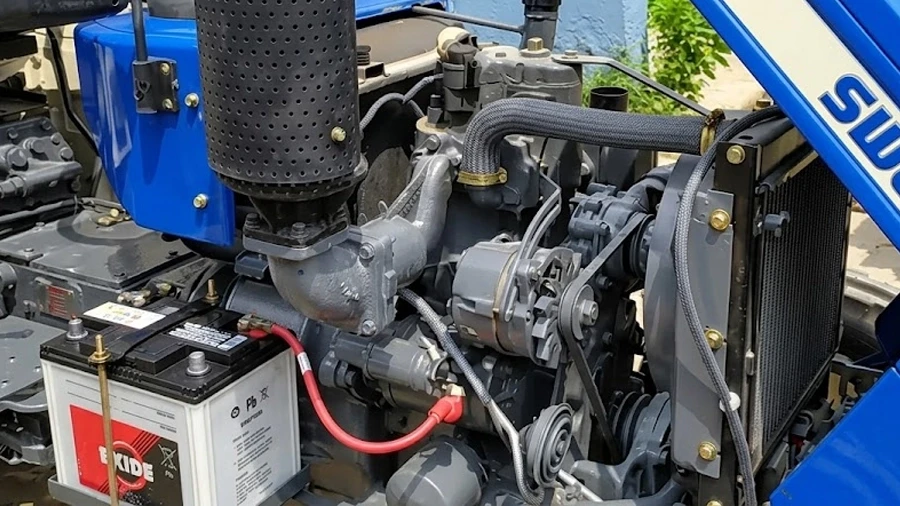

- It comes with a Type 4 stroke direct injection diesel engine that produces 2300 r/min, which helps in maintaining the working pace with implements.
- The 15 HP engine capacity of the tractor makes it suitable for inter-row cultivation and light haulage.
- Single-cylinder engines usually produce more noise during work, but Swaraj 717 provides a special feature of an adjustable silencer. It helps to control the engine's noise level and exhaust flow on the fly.
- Equipped with a 3-stage oil bath air filter, which keeps the dust and debris out of the engine, especially when working in dry or dusty farm conditions.

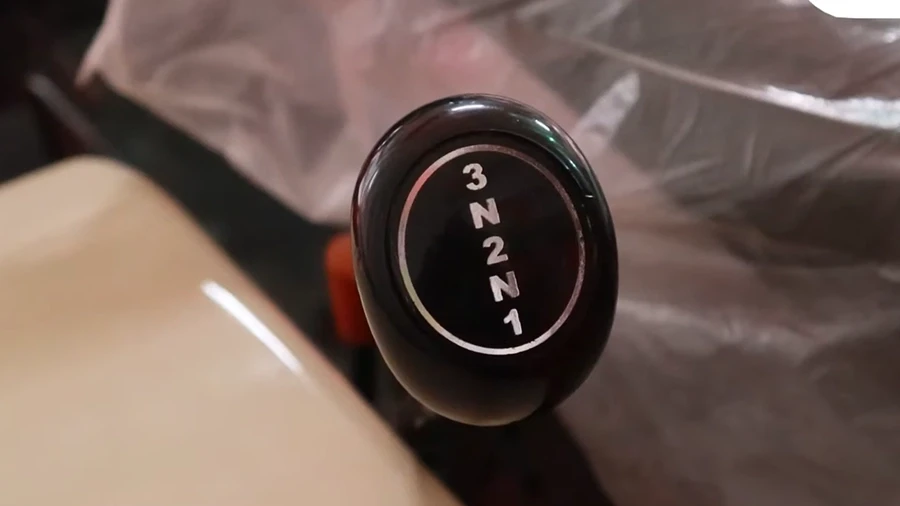

- The Swaraj 717 features a sliding mesh gearbox with a single clutch, offering easy and better gear engagement.
- 6 forward and 3 reverse gears give better control in different farming applications. The low range gear helps in precise operation, like inter-row cultivation. While high-range gears help in transportation.
- The forward speed range between 2.02 and 25.62 kmph. This speed range can control different tasks, like seedbed preparation to fast movement in small fields.
- The reverse speed ranges between 1.92 and 5.45 kmph, providing sufficient control to back out of narrow beds or work with tractor-mounted implements.

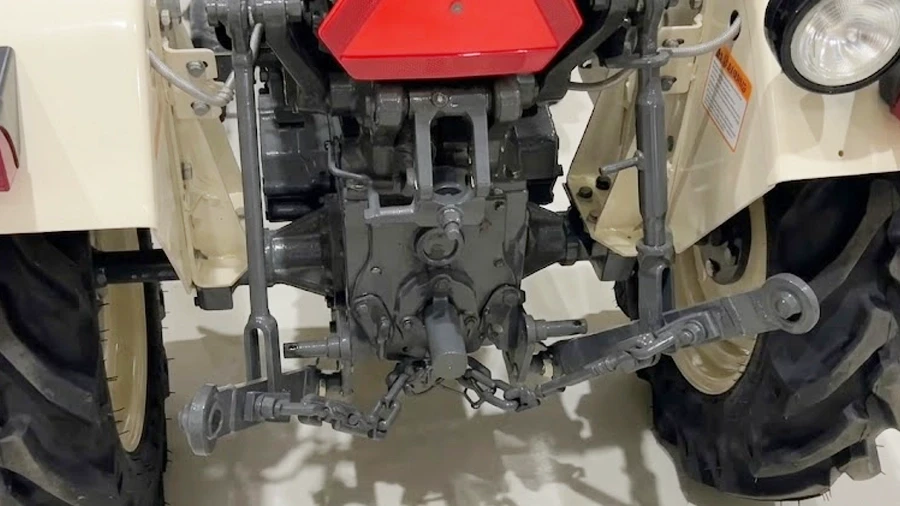

- The Swaraj 717 is fitted with live Hydraulics and ADDC hydraulics, which power other agricultural equipment such as rotavators, cultivators & trolleys.
- It has position control and automatic draft control that adjusts lower links at any desired height and maintains the uniformity of the draft.
- The lifting capacity of 780 kg at the hitch allows easy handling of light implements for daily farm tasks.
- The tractor is equipped with 5.20 X 14 front tyres and 8 X 18 rear tyres for better stability and grip while moving with several implements.

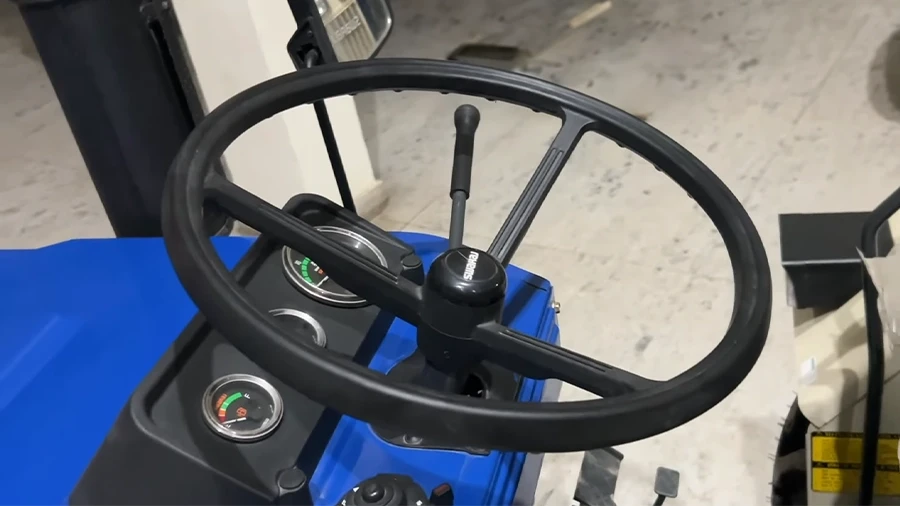

- The single drop arm steering column gives better control when turning because it makes it easier to reverse and works well for smaller fields.
- The tractor has a new feature of a digital instrument cluster, from which a user can track engine metrics, fuel status, work tracking, and operational status.
- Ground clearance of 260 mm allows the tractor to pass over crop rows without damaging standing plants, which is critical for row crops like cotton, chillies, and vegetables.
- The adjustable silencer allows the exhaust direction to be repositioned, preventing damage to low-hanging branches when the tractor operates in orchard rows.
- Swaraj 717 is small with 9 PTO HP, which makes it suitable for low-power-required implements.
- It is efficient to operate ploughs and cultivators for breaking and aerating the soil for plantation.
- The tractor can handle sprayers, reapers, and fertilizer implements to apply chemicals and pesticides for healthy crop growth.
Swaraj 717 Rating & Reviews
4.7 Rating
Based on
9 reviews
Ayush Kumar
17 Mar 2026
Swaraj 717 chote kheton ke lie ek bhdia saathi hai. Mere ek chota kissan hoon, mere paas 2 acre ka khet hai, or iss baar maine tarbooz ugaaye they. Sara zameen ki jutayi se leke fasal ko khet tak pohchane ka kaam iss tractor ne ache se kia. Or 2 acres ki zameen pr kam se kam 30 acre tarbooz uga paya.
Read More
Ram Saini
17 Mar 2026
Main Madhya Pradesh ka kisan hoon aur maine kuch mahine pehle Swaraj 717 liya. Sabse pehle mujhe iska daam sahi laga, kyunki yeh budget mein aane wala tractor hai. Or daam acha hone ke sath sath aaram bhi hai, bina ruke kaam krta hai, achi warranty hai.
Read More
Bony Kumar
29 Jan 2025
Swaraj 717 meri kheti ke liye ek bhrosa mand tractor hai. Chhoti kheti mein, chahe mitti ka kaam ho ya paani le jana, sab kuch is tractor ke sath aasani se hota hai. Iska maintenance bhi kam lagta hai, jo ek bada plus point hai. Har kisan ke liye yeh ek faaydekaari tractor hai.
Read More
Satish
29 Jan 2025
Swaraj 717 ka diesel khapat bahut hi kam hai, aur iska engine ekdum shaandar kaam karta hai. Kheton mein se trolley ke sath bori aur saaman le jaana ab bahut hi asaan ho gaya hai. Iska size chhota hone ke karan chhoti galiyon aur raste par chalane mein koi dikkat nahi hoti.
Read More
Ganesh
28 Jan 2025
Mitti palatne aur jhuta chalane ke liye yeh tractor kaafi damdar hai. Iska handling aur gear system ekdum asaan hai, jo kaam ko tezi se pura karta hai. Iski lifting capacity se meri trolley aur chhoti machine chalane mein madad milti hai. Ekdam khush hoon Swaraj 717 se
Read More
Kashmir chand
28 Jan 2025
Mere chhote khet ke liye yeh tractor ekdam anukool hai. Hal chalana, bijai karna ya phir trolley kheenchna, sab kuch badi aasani se karta hai. Iska engine shandar performance deta hai, aur diesel ka kharcha bhi kam hota hai.
Read More
Mangesh Kumar
28 Jan 2025
Swaraj 717 ek chhoti aur damdar tractor hai jo meri sabziyon ki kheti ke liye ekdum sahi hai. Yeh tractor chhoti kheton mein aasani se chal jata hai, aur iska size meri trolley aur har implement ke liye perfect hai. Diesel ki bachat karta hai aur iska engine meri har zarurat ko pura karta hai.
Read More
mohit
20 Jan 2023
swaraj 717 best tractor for framing. best tractor in India
Read More
Samaydeen
22 Jun 2022
Good

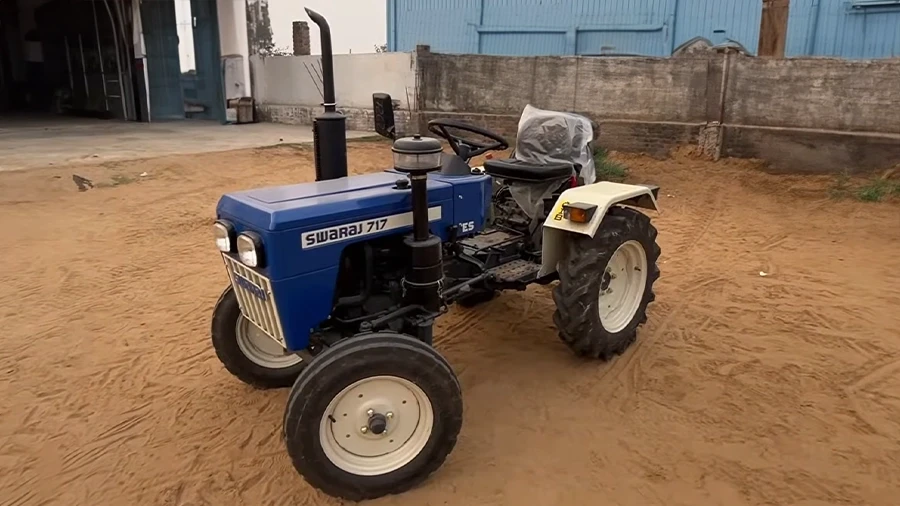

Read MoreSwaraj 717 Tractor Images
View the latest Swaraj 717 Tractor images, featuring 5 high resolution pictures of its build design and operating area. The Swaraj 717 offers versatility and style to match your farming needs.
Brief about Swaraj 717 Tractor in India
Why purchase Swaraj 717?
Swaraj 717 tractor is a compact tractor that is able to perform light-duty farming like ploughing and non-farming operations like carrying unplanned goods for short distances, etc. This compact yet useful tractor comes in the economical price range between Rs. 3.19 - 3.29 Lakhs (ex-showroom). This tractor is a perfect fit for small-scale farmers and labourers finding alternatives to their work.
Mention some special specifications of Swaraj 717
Below are the mentioned bullet points that make the tractor unique in its price segment.
Swaraj 717 comes with a 1-cylinder, water-cooled engine that produces 15 HP of rated engine power and 9 HP of take-off power (PTO). Thus, rotating the crankshaft with an angular velocity of 2300 RPM. This produces a torque of 34.25 Newton-Metres.
The air filter in the engine is of 3 stage oil bath type. Thus, the engine gets pure air for combustion.
The water-cooled engine makes the tractor a remote-friendly Swaraj tractor.
The single friction plate of 200 mm diameter makes it simple for the clutch to handle a 6+3 sliding mesh gear combo.

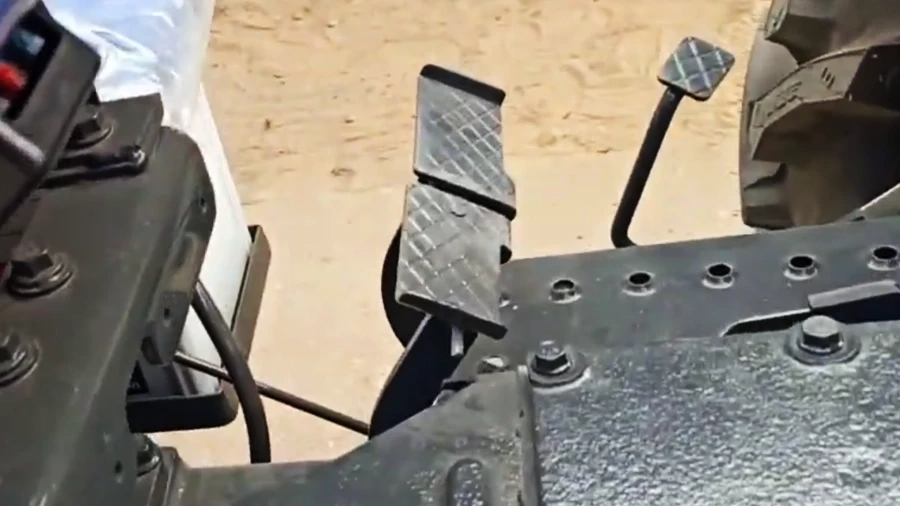

The dry disc brakes gear combo gives the tractor a safe drive.
The take-off power of 9 HP supported by 6 splines makes the tractor capable enough to lift a weight of 850 Kg.
This compact tractor has a fuel tank capacity of 19 Litres. This makes it suitable for doing small-scale work.
Swaraj 717 model comes in 2WD only.
Read More
Read Less
Swaraj 717 Full Specifications
| HP Category | 15 HP |
| Engine Capacity | 863.5 CC |
| Engine Rated RPM | 2300 |
| No of Cylinder | 1 |
| Air Filter | 3-stage oil bath |
| Cooling System | Water Cooled |
| Clutch Type | Single clutch |
| Transmission Type | Sliding Mesh |
| Gear Level Position | Side Shift |
| Speed Min-Max | 2.02-25.62 kmph |
| Reverse Speed Min - Max | 1.92- 5.45 kmph |
| Forward Gears | 6 |
| Reverse Gears | 3 |
| Brake Type | Dry disk brakes |
| Steering Type | Mechanical Steering |
| Steering Adjustment | Yes |
| PTO Type | Live Single Speed |
| PTO RPM | Standard 540 r/min @ 2053 engine r/min |
| PTO Power | 9 |
| Fuel Tank Capacity | 23 Ltr |
| Lift Capacity In Kg | 780 KG |
| 3 Point Linkage | Live Hydraulics |
| Hydraulic Controls | ADDC for l type implement pins |
| Front Tyre | 5.20 X 14 |
| Rear Tyre | 8 X 18 |
| Drive Type | 2WD |
| Other | Instruments Engine r/min cum digital meter along with fuel gauge, water temp. Gauge and oil pressure indicator, Electricals 12 Volt, 50 Ah. Battery, starter motor and alternator |
| Warranty | 750 hr / 1 Year |
| Wheel Drive | 2WD |
| Weight | 850 KG |
| Wheelbase | 1490 MM |
| Overall Length | 2435 MM |
| Tractor Width | 1210 MM |
| Ground Clearance | 260 MM |
Swaraj 717 Comparison with Similar Tractors
Swaraj 717
Ex-Showroom Price
₹ X,XX
4.7/5
(9 Reviews)
No. Of Cylinder
1
HP Category
15 HP
PTO HP
9
Lifting Capacity
780 KG
Wheel drive
2WD
Warranty
750 hr / 1
No. Of Cylinder
2
HP Category
20 HP
PTO HP
18.4
Lifting Capacity
750 KG
Wheel drive
2WD
Warranty
1000 hr/1
No. Of Cylinder
1
HP Category
20 HP
PTO HP
11.4
Lifting Capacity
778 KG
Wheel drive
2WD
Warranty
2000 hr/2
No. Of Cylinder
1
HP Category
20 HP
PTO HP
17
Lifting Capacity
600 KG
Wheel drive
2WD
Warranty
700 Hours/ 1
No. Of Cylinder
3
HP Category
20 HP
PTO HP
17
Lifting Capacity
650 KG
Wheel drive
2WD
Warranty
2000 Hours Or 2
No. Of Cylinder
1
HP Category
18 HP
PTO HP
15.3
Lifting Capacity
700 KG
Wheel drive
2WD
Warranty
1000 hr / 1
No. Of Cylinder
1
HP Category
20 HP
PTO HP
12
Lifting Capacity
750 KG
Wheel drive
2WD
Warranty
2000 Hour/ 2
Explore all Swaraj tractors
Explore the latest models, specifications, and pricing for Swaraj tractors
View Swaraj tractorsTractor Guru Recommendations
ALL SWARAJ TRACTORS HP & CATEGORY
Similar to Swaraj 717
Swaraj 717 News & Updates
A True Evaluation of Swaraj 717 Tractor
In this section, we not only chose to explain the features of the Swaraj 717 tractor to you but also provide a thorough study-based review of the Swaraj 717. Furthermore, we will explain the full specialities of the tractor that make it special among the compact tractor segment.
What are some awesome features of Swaraj 717?
The awesome features of Swaraj 717 tractor in terms of constraints like engine, performance and price of swaraj 717, etc. are mentioned below. Please go through the below-given subheading and paragraphs carefully to understand the swaraj 717 features.
Engine, Performance & Swaraj 717 price in India
The engine of Swaraj 717
Swaraj 717 tractor comes with a water-cooled, 1-cylinder engine that produces 15 HP of power. With a 3-stage oil bath, the air filter in the engine clears the air entering the engine. Hence, The single friction plate clutch in the tractor is responsible for the smooth movement of the Swaraj 717. While the sliding mesh gear type causes lesser wear and tear. The 6+3 gear combo is responsible for a maximum forward speed of 25.62 Kmph and a maximum reverse speed of 5.45 Kmph.
Performance and price of Swaraj 717 15 HP
Swaraj 717 15 HP is a compact tractor that can perform small-scale farming and non-farming operations. In its segment, Swaraj 717 15 HP fits among the best in the mini tractors category. The Swaraj 717 tractor price in India is Rs. 3.19-3.29 Lakhs (ex-showroom). You can check on road price and loan / finance option of swaraj 717 after submit your information on our website.
Torque, load-lifting capacity and hydraulics of Swaraj 717 15 HP tractor
The torque and the load lifting capacity of 717 tractor Swaraj
The torque of Swaraj 717 15 HP is 34.25 Newton-Metres. This enables the Swaraj 717 to lift a weight of 850 Kg.
Hydraulics of Swaraj tractor 717
Hydraulics of Swaraj tractor 717 are ADDC enabled, i.e. Automatic Draft and Depth Control. This means that the external hydraulics are made sensible in this tractor and can sense the direction of the weight it is lifting. Furthermore, the category one 3-point linkage allows the implements to work efficiently.
The style and design of Swaraj 717
Weighing 850 Kg, the Swaraj 717 comes in a blue theme, covered by white pallets. On both sides of the bonnet, the model's name is imprinted in blue colour with a white background on it. The smoke chimney is present on the right-hand side of the driver, while the air filter is placed just alongside the bonnet on the left-hand side.
The front halogen lamps light the front section of the vehicle just above the logo. The comfortable seats of Swaraj 717 provide the driver with a fatigue-free ride. While side indicators are present on both the mudguards, the rear part of the tractor is also well lit. The rear part contains halogen lamps for night visibility and LED side indicators for safe on-road operations. With a wheelbase of 1490 mm, the Swaraj 717 comes with a stable chassis.
Swaraj 717 reviews: What is our say about the tractor?
After the discussion of the Swaraj 717 tractor, we have come to the conclusion that the “717 tractor Swaraj is just the tractor you want if you’re a small scale farmer. We rate it among the best compact tractors available in India”.
Read More
Read Less
Frequently Asked Question - Swaraj 717
