New Holland 3630 TX Super vs 5620 TX Plus: Price & Specs

Are you thinking to buy New Holland TX Series tractor within the range between 50 and 65 HP? New Holland 5620 and New Holland 3630 are two models that fall in two different power classes. The 3630 TX Super is a 50 HP model suitable for haulage, ploughing & cultivation in medium-sized land. The 5620 TX Plus Trem IV moves up to 65 HP and is built for heavier tools and longer working hours. Check out some of the specifications of both the models:

•     3630 TX Super: 50 HP, 46 PTO HP, 1700 kg lift, from ₹7.85 lakh.
•     5620 TX Plus Trem IV: 65 HP, 64 PTO HP, 2000 kg lift, from ₹11.37 lakh.
•     Both are 2WD tractors with a 6000-hour or six year warranty.

Before buying any of the models, check out its specifications, USPs, price and other features that make your purchasing decision better.

New Holland 5620 TX Plus & 630 TX Super: Specifications & Performance

Read on for a comprehensive comparison of both models, including details on their engines, gearboxes, hydraulics, pricing, and daily farm performance.

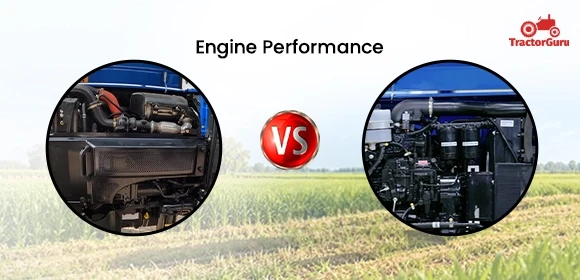

Engine Performance

New Holland 3630 is a 50 HP tractor with three cylinder, 2931 cc FPT S8000 unit rated at 2500 RPM, and it delivers 46 PTO HP. That is a strong PTO figure for a 50 HP tractor, so rotavators and cultivators run without much struggle.

New Holland 5620 HP is a 65 tractor with a three cylinder engine, rated at 2300 RPM. PTO power is 64 HP, suitable for every type of implements. The engine is built with FPT HPCR TREM Stage IV series. This model is simply meant for farmers who need extra pulling power for big implements and heavy loads.

Key Specs:

Transmission & Gearbox

The 3630 TX Super uses a fully constant mesh transmission with 8 forward and 2 reverse gears. Forward speed runs from 3.2 to 32.35 km/h. Its double clutch has an independent PTO lever, so the implement keeps running while the tractor pauses.

The 5620 TX Plus Trem IV has a partial synchromesh gearbox with 12 forward and 3 reverse gears, in creeper or UG versions. The double clutch comes with an independent clutch lever here too. More gears mean closer speed matching, from slow tillage to quick road trips. It also carries a 100 Ah battery and 55 amp alternator, against 88 Ah and 45 amp on the 3630.

Key Specs:

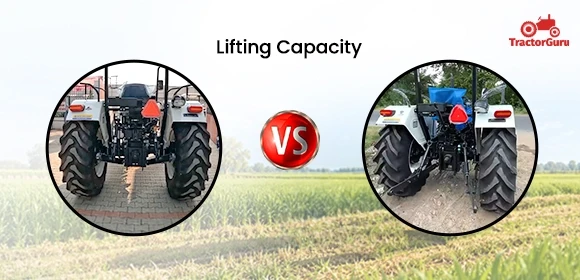

Lifting Capacity

The 3630 lifts 1700 kg through ADDC hydraulics. It also gets Sensomatic24 with 24 sensing points, height limiter, and DRC and isolator valves. Most mounted implements fit within that limit.

The 5620 lifts 2000 kg and carries the same hydraulic features. A remote valve of up to 4 ports and a swinging drawbar are available as options. That extra 300 kg of lift matters when large rotavators and heavy implements are on work.

Price Comparison

The New Holland 3630 price starts at ₹7.85 lakh (ex-showroom). On the other hand, New Holland 5620 price starts at ₹11.37 lakh, which is about ₹3.5 lakh more. For that gap, the 5620 gives 15 more HP, 18 more PTO HP, 300 kg more lift, and a TREM IV engine.

These are ex-showroom figures. On-road cost adds RTO fees, insurance and state taxes, so it changes from state to state. Ask the dealer for a written quote, and run the loan numbers on an EMI calculator before booking.

Brakes, Fuel Tank & Steering

Both tractors run oil immersed multi-disk brakes and power steering, so safety and comfort are on par. The fuel tank is where they part ways. The 3630 holds 60 litres, and the 5620 holds 70 litres for longer shifts. One owner says the big tank lets him work long hours without refuelling stops.

The 5620 is also heavier at 2600 kg against 2060 kg, with 500 mm ground clearance against 445 mm. That weight gives better grip and stability under big loads. The lighter 3630 is easier to move around in smaller fields.

Main USPs of Each Tractor

New Holland 3630 TX Super

•     46 PTO HP, which is high for a 50 HP tractor.
•     Double clutch with an independent PTO lever.
•     Sensomatic24 hydraulics with 24 sensing points.
•     Side shift gear lever and power steering for long hours in the seat.

New Holland 5620 TX Plus Trem IV

•     65 HP FPT HPCR engine with TREM IV norms and multiple engine modes.
•     64 PTO HP and 2000 kg lifting capacity.
•     70 litre tank and a 100 Ah battery.
•     Optional ROPS with canopy, front fender and 4-port remote valve.

Final Word

Select the 3630 TX Super if a 50 HP tractor covers your work and the budget matters. If 65 HP, a 2,000 kg lift capacity, and a larger fuel tank match your workload, the 5620 TX Plus Trem IV is built for you. Confirm the on-road price and available options with a New Holland dealer before booking.
